Photochemistry with Photochem
Gas-rich exoplanets (e.g., warm Jupiters or mini-Neptunes) often have an atmospheric composition that is out of chemical equilibrium. As gases mix from high pressures and temperature to the cooler upper atmosphere, reactions slow and can ultimately stop, failing to maintain equilibrium. Also, UV photolysis and subsequent chemical reactions can also drive disequilibrium chemistry.
In this tutorial you will learn the basics of simulating disequilibrium chemistry in a gas-rich exoplanet’s atmosphere with the Photochem code (Wogan et al. 2023). Specifically, this tutorial broadly reproduces the photochemical SO\(_2\) in WASP-39b’s atmosphere as described in Tsai et al. (2023) and computes the resulting transmission spectrum with Picaso.
[1]:
import warnings
warnings.filterwarnings('ignore')
import numpy as np
from matplotlib import pyplot as plt
plt.rcParams.update({'font.size': 13})
from IPython.display import clear_output
from astropy import constants
class WASP39b:
planet_radius = 1.279 # Jupiter radii
planet_mass = 0.28 # Jupiter masses
planet_Teq = 1166 # Equilibrium temp (K)
stellar_radius = 0.932 # Solar radii
stellar_Teff = 5400 # K
stellar_metal = 0.01 # log10(metallicity)
stellar_logg = 4.45 # log10(gravity), in cgs units
Installing Photochem
For this tutorial to work, you must install Photochem with conda: conda install -c conda-forge photochem=0.6.7
Choosing a UV stellar spectrum
To run photochem, we need a stellar spectrum that includes the UV. For other spectral applications, Picaso often makes use of the “phoenix” or “ck04models” stellar models. But neither of these stellar spectra characterize the UV. The best alternative is the MUSCLES database of spectra. Photochem has some utilities for downloading MUSCLES spectra:
[2]:
from photochem.utils import stars
stars.print_muscles_stars()
GJ1132: {st_logg: 5.04, st_met: -0.17, st_rad: 0.22, st_teff: 3229.0}
GJ1214: {st_logg: 5.03, st_met: 0.24, st_rad: 0.22, st_teff: 3101.0}
GJ15A: {st_logg: 4.89, st_met: -0.391, st_rad: 0.38, st_teff: 3742.67}
GJ163: {st_logg: 4.82, st_met: 0.1, st_rad: 0.41, st_teff: 3399.0}
GJ176: {st_logg: 4.78, st_met: 0.147, st_rad: 0.48, st_teff: 3703.49}
GJ436: {st_logg: 4.84, st_met: 0.099, st_rad: 0.42, st_teff: 3586.11}
GJ551: {st_logg: 5.16, st_met: null, st_rad: 0.14, st_teff: 2900.0}
GJ581: {st_logg: 4.94, st_met: -0.088, st_rad: 0.32, st_teff: 3490.39}
GJ649: {st_logg: 4.76, st_met: -0.15, st_rad: 0.5, st_teff: 3734.0}
GJ667C: {st_logg: 4.69, st_met: -0.55, st_rad: null, st_teff: 3650.0}
GJ674: {st_logg: 4.86, st_met: -0.28, st_rad: 0.36, st_teff: 3451.0}
GJ676A: {st_logg: 4.62, st_met: 0.08, st_rad: 0.69, st_teff: 3734.0}
GJ699: {st_logg: 4.9, st_met: -0.56, st_rad: 0.18, st_teff: 3195.0}
GJ729: {st_logg: null, st_met: null, st_rad: null, st_teff: 3240.0}
GJ832: {st_logg: 4.7, st_met: -0.7, st_rad: 0.48, st_teff: 3657.0}
GJ849: {st_logg: 4.8, st_met: 0.09, st_rad: 0.45, st_teff: 3467.0}
GJ876: {st_logg: 4.87, st_met: 0.213, st_rad: 0.37, st_teff: 3293.74}
HAT-P-12: {st_logg: 4.61, st_met: -0.063, st_rad: 0.7, st_teff: 4652.87}
HAT-P-26: {st_logg: 4.5, st_met: 0.028, st_rad: 0.86, st_teff: 5061.9}
HD-149026: {st_logg: 4.17, st_met: 0.33, st_rad: 1.46, st_teff: 6084.0}
HD40307: {st_logg: 4.63, st_met: -0.323, st_rad: 0.72, st_teff: 4867.44}
HD85512: {st_logg: null, st_met: null, st_rad: null, st_teff: 4455.0}
L-678-39: {st_logg: 4.94, st_met: -0.12, st_rad: 0.34, st_teff: 3505.0}
L-98-59: {st_logg: 4.86, st_met: -0.46, st_rad: 0.3, st_teff: 3415.0}
L-980-5: {st_logg: null, st_met: null, st_rad: null, st_teff: 3278.0}
LHS-2686: {st_logg: null, st_met: null, st_rad: null, st_teff: 3220.0}
LP-791-18: {st_logg: 5.12, st_met: -0.09, st_rad: 0.18, st_teff: 2960.0}
TOI-193: {st_logg: 4.47, st_met: 0.25, st_rad: 0.95, st_teff: 5480.0}
TRAPPIST-1: {st_logg: 5.24, st_met: 0.053, st_rad: 0.12, st_teff: 2566.0}
V-EPS-ERI: {st_logg: 4.59, st_met: -0.044, st_rad: 0.76, st_teff: 5020.38}
WASP-127: {st_logg: 4.2, st_met: -0.193, st_rad: 1.35, st_teff: 5828.01}
WASP-17: {st_logg: 4.18, st_met: -0.07, st_rad: 1.57, st_teff: 6548.0}
WASP-43: {st_logg: 4.5, st_met: -0.01, st_rad: 0.65, st_teff: 4500.0}
WASP-77A: {st_logg: 4.48, st_met: -0.1, st_rad: 0.91, st_teff: 5617.0}
TOI-193 appears to have the closest effective temperature to WASP-39, so we will use it’s spectrum. The cell below downloads the spectrum from MUSCLES, rescales the spectrum so it has the bolometric flux appropriate for WASP-39b, then saves it to a file format that photochem will later read.
[3]:
wv, F = stars.muscles_spectrum(
'TOI-193',
outputfile='TOI-193.txt',
Teq=WASP39b.planet_Teq
)
Downloading the spectrum at the following URL: https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HLSP/muscles/v23-v24/toi-193/hlsp_muscles_multi_multi_toi-193_broadband_v24_adapt-const-res-sed.fits
[4]:
fig,ax = plt.subplots(1,1,figsize=[5,4])
# Plot the spectrum
ax.plot(wv, F, label='TOI-193 (MUSCLES)')
# Phoenix spectrum
import stsynphot as sts
import astropy.units as u
ST_SS = sts.grid_to_spec('phoenix', 5480, 0.25, 4.47)
wave_star = (ST_SS.waveset).to(u.nm).value
flux_star = ST_SS(ST_SS.waveset,flux_unit=u.Unit('erg*cm^(-2)*s^(-1)*AA^(-1)')).value
factor = stars.equilibrium_temperature_inverse(WASP39b.planet_Teq, 0.0)/stars.energy_in_spectrum(wave_star, flux_star)
ax.plot(wave_star, flux_star*factor, alpha=0.5, label='Phoenix')
ax.set_ylabel('Flux at planet (mW/m$^2$/nm)')
ax.set_xlabel('Wavelength (nm)')
ax.set_xscale('log')
ax.set_yscale('log')
ax.set_ylim(1e-3,2e6)
ax.set_xlim(1,1000)
ax.grid(alpha=0.4)
ax.legend()
plt.show()

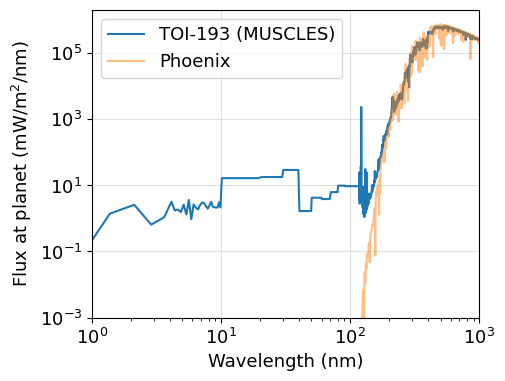

The plot above clearly shows how the phoenix model fails to capture the UV.
Choosing a reaction network
To run photochem, we also need a network of chemical reactions and thermodynamic data. We can accomplish this with the function zahnle_rx_and_thermo_files, which starts with the main reaction file shipped with photochem and the trims out some unnecessary chemistry. Running this next cell produces two files: photochem_rxns.yaml for photochemistry/kinetics and photochem_thermo.yaml for equilibrium chemistry calculations.
[5]:
from photochem.utils import zahnle_rx_and_thermo_files
zahnle_rx_and_thermo_files(
atoms_names=['H', 'He', 'N', 'O', 'C', 'S'], # We select a subset of the atoms in zahnle_earth.yaml (leave out Cl)
rxns_filename='photochem_rxns.yaml',
thermo_filename='photochem_thermo.yaml',
remove_reaction_particles=True # For gas giants, we should always leave out reaction particles.
)
Note, fast chemistry can sometimes slow down or prevent the photochemical model from reaching a steady state. Sulfur chemistry in particular, is often problematic, but mostly for cooler planets than WASP-39b. If you have troubles reaching convergence, then perhaps remove “S3”, “S4”, “S8”, and “S8aer”, if these species are not extremely important:
zahnle_rx_and_thermo_files(
atoms_names=['H', 'He', 'N', 'O', 'C', 'S'],
rxns_filename='photochem_rxns.yaml',
thermo_filename='photochem_thermo.yaml',
exclude_species=['S3','S4','S8','S8aer'],
remove_reaction_particles=True
)
If you don’t care about sulfur species at all, then just omit “S” from atoms_names
zahnle_rx_and_thermo_files(
atoms_names=['H', 'He', 'N', 'O', 'C'],
rxns_filename='photochem_rxns.yaml',
thermo_filename='photochem_thermo.yaml',
remove_reaction_particles=True
)
It is possible to use reaction networks besides the ones shipped with photochem. For example, photochem has the function vulcan2yaml (import with from photochem.utils import vulcan2yaml), which allows Photochem to use VULCAN chemical networks.
Initializing the photochemical model
Next, we initialize the gas giant extension to photochem, called EvoAtmosphereGasGiant.
[6]:
from photochem.extensions import gasgiants
pc = gasgiants.EvoAtmosphereGasGiant(
'photochem_rxns.yaml',
'TOI-193.txt',
planet_mass=WASP39b.planet_mass*constants.M_jup.cgs.value,
planet_radius=WASP39b.planet_radius*constants.R_jup.cgs.value,
solar_zenith_angle=83, # Used in Tsai et al. (2023). By default, 60.
thermo_file='photochem_thermo.yaml'
)
pc.gdat.verbose = False # No printing
# The diurnal averaging factor. This is normally 0.5 for a global average,
# but we use 1 to follow Tsai et al. (2023).
pc.var.diurnal_fac = 1.0
When modeling a gas giant, researchers often assume the planet has some composition relative to the Sun (i.e., a metallicity). The EvoAtmosphereGasGiant extension has a ChemEquiAnalysis object attached to it (pc.gdat.gas, see from photochem.equilibrate import ChemEquiAnalysis for details) for doing equilibrium chemistry calculations at depth in the gas giant atmosphere. This object contains an estimated composition of the Sun:
[7]:
for i,atom in enumerate(pc.gdat.gas.atoms_names):
print('%s %.2e'%(atom,pc.gdat.gas.molfracs_atoms_sun[i]))
H 9.21e-01
N 6.23e-05
O 4.51e-04
C 2.48e-04
S 1.21e-05
He 7.84e-02
The above solar composition is very reasonable, but below we change to the exact solar composition in Tsai et al. (2023) to best reproduce their results.
[8]:
molfracs_atoms_sun = np.ones(len(pc.gdat.gas.atoms_names))*1e-10
comp = {
'O': 5.37E-4,
'C': 2.95E-4,
'N': 7.08E-5,
'S': 1.41E-5,
'He': 0.0838,
'H': 1
}
tot = sum(comp.values())
for key in comp:
comp[key] /= tot
for i,atom in enumerate(pc.gdat.gas.atoms_names):
molfracs_atoms_sun[i] = comp[atom]
pc.gdat.gas.molfracs_atoms_sun = molfracs_atoms_sun
Next, we establish several key variables
The Pressure-Temperature profile. Here, we use the “morning” profile described in Tsai et al. (2023), computed with a GCM.
The \(K_{zz}\) profile (i.e., eddy diffusion). Here, we use the same values as Tsai et al. (2023).
The metallicity. Like in Tsai et al. (2023), we assume a 10x solar value.
The C/O ratio. Following Tsai et al. (2023), we assume the solar ratio.
[9]:
# The "Morning" P-T profile from a GCM in Tsai et al. (2023)
P = np.array([1.816e+08, 1.222e+08, 8.216e+07, 5.526e+07, 3.717e+07, 2.500e+07,
1.682e+07, 1.131e+07, 7.607e+06, 5.117e+06, 3.441e+06, 2.315e+06,
1.557e+06, 1.047e+06, 7.044e+05, 4.738e+05, 3.187e+05, 2.144e+05,
1.442e+05, 9.702e+04, 6.527e+04, 4.392e+04, 2.956e+04, 1.990e+04,
1.340e+04, 9.030e+03, 6.089e+03, 4.111e+03, 2.779e+03, 1.883e+03,
1.280e+03, 8.735e+02, 5.995e+02, 4.146e+02, 2.896e+02, 2.050e+02,
1.474e+02, 1.081e+02, 8.098e+01, 6.216e+01, 4.889e+01, 3.935e+01,
3.233e+01, 2.700e+01, 2.281e+01, 1.939e+01, 1.648e+01, 1.392e+01,
1.159e+01, 9.421e+00, 7.352e+00, 5.349e+00]) # dynes/cm^2
T = np.array([4503.4, 4190.6, 3886. , 3589.6, 3302.8, 3028.7, 2766. , 2505.9,
2246.5, 2024.9, 1853.3, 1725.7, 1640.7, 1576.9, 1518.7, 1453.3,
1385.2, 1318.5, 1249. , 1180.7, 1117.8, 1061.5, 1010.1, 959.2,
909.3, 864.8, 824.3, 789.8, 759. , 734.6, 714.9, 701.3,
691.3, 686.4, 687.8, 696.3, 709.1, 723.8, 737.4, 747.2,
754.9, 761. , 765.3, 767.1, 767.2, 764.8, 761.3, 755. ,
746.8, 734.7, 720.2, 703.4])
# Assumed Kzz (cm^2/s) in Tsai et al. (2023)
Kzz = np.ones(P.shape[0])
for i in range(P.shape[0]):
if P[i]/1e6 > 5.0:
Kzz[i] = 5e7
else:
Kzz[i] = 5e7*(5/(P[i]/1e6))**0.5
metallicity = 10.0 # 10x solar
CtoO = 1.0 # 1x solar
With these key values set, we can call initialize_to_climate_equilibrium_PT. This predicts an starting guess for the atmospheric composition using chemical equilibrium. The routine then builds an altitude grid for the photochemical model based on this initial chemistry.
[10]:
pc.initialize_to_climate_equilibrium_PT(P, T, Kzz, metallicity, CtoO)
Integrating the photochemistry to a steady-state
We can now integrate to a photochemical steady state. This can be most easily accomplished by calling pc.find_steady_state(), but below we instead integrate one step at a time, plotting the atmosphere as it evolves.
[11]:
pc.initialize_robust_stepper(pc.wrk.usol)
[12]:
while True:
# Plot the atmosphere
clear_output(wait=True)
fig,ax = plt.subplots(1,1,figsize=[5,4])
fig.patch.set_facecolor("w")
sol = pc.return_atmosphere()
soleq = pc.return_atmosphere(equilibrium=True)
species = ['CO2','H2S','S','S2','SO','SO2']
names = ['CO$_2$','H$_2$S','S','S$_2$','SO','SO$_2$']
colors = ['C0','C1','gold','grey','skyblue','violet']
for i,sp in enumerate(species):
ax.plot(sol[sp],sol['pressure']/1e6,label=names[i],c=colors[i])
# ax.plot(soleq[sp],soleq['pressure']/1e6,c=colors[i], ls=':', alpha=0.4)
ax.set_xscale('log')
ax.set_yscale('log')
ax.set_xlim(1e-8,1e-3)
ax.set_ylim(10,5e-7)
ax.grid(alpha=0.4)
ax.legend(ncol=1,bbox_to_anchor=(1,1.0),loc='upper left')
ax.set_xlabel('Mixing Ratio')
ax.set_ylabel('Pressure (bar)')
ax.set_yticks(10.0**np.arange(-6,2))
plt.show()
# break
for i in range(100):
give_up, reached_steady_state = pc.robust_step()
if give_up or reached_steady_state:
break
if give_up or reached_steady_state:
break
The plot broadly reproduces Fig. 1a in Tsai et al. (2023). Here, we do not use the exact same stellar spectrum as Tsai et al. (2023), so some differences are expected.
Computing the transmission spectrum with Picaso
Now, we can export this composition and climate to Picaso, to compute its transmission spectrum.
[13]:
from picaso import justdoit as jdi
import os
import pandas as pd
# For creating a Picaso input from Photochem
def create_picaso_atm(pc):
sol = pc.return_atmosphere()
del sol['Kzz']
sol['pressure'] /= 1e6 # convert to bars
atm = {}
for key in sol:
if key in ['pressure', 'temperature'] or 'aer' not in key:
atm[key] = sol[key][::-1].copy()
return pd.DataFrame(atm)
The cell below grabs some opacities, initializes the Picaso inputs class, and sets the gravity and stellar spectrum.
[14]:
opa = jdi.opannection(wave_range=[2,5.5])
case = jdi.inputs()
case.gravity(
mass=WASP39b.planet_mass,
mass_unit=jdi.u.Unit('M_jup'),
radius=WASP39b.planet_radius,
radius_unit=jdi.u.Unit('R_jup')
)
case.star(
opa,
temp=WASP39b.stellar_Teff,
metal=WASP39b.stellar_metal,
logg=WASP39b.stellar_logg,
radius=WASP39b.stellar_radius,
radius_unit=jdi.u.Unit('R_sun')
)
Below is a little helper function for computing spectra with different inputs, then downbinning the spectra to lower resolution.
[15]:
def spectrum(opa, case, atm, R=100, atmosphere_kwargs={}):
# Set atmosphere
case.atmosphere(atm, verbose=False, **atmosphere_kwargs)
# Compute spectrum
df = case.spectrum(opa, calculation='transmission')
# Extract spectrum
wv_h = 1e4/df['wavenumber'][::-1].copy()
wavl_h = stars.make_bins(wv_h)
rprs2_h = df['transit_depth'][::-1].copy()
# Rebin
wavl = stars.grid_at_resolution(np.min(wavl_h), np.max(wavl_h), R)
rprs2 = stars.rebin(wavl_h.copy(), rprs2_h.copy(), wavl.copy())
return wavl, rprs2
Finally, we compute the transmission spectrum several times leaving out important molecules (e.g., SO\(_2\)), to show their impact on the spectrum:
[16]:
fig,ax = plt.subplots(1,1,figsize=[6,4])
# Create Picaso atmosphere from Photochem object
atm = create_picaso_atm(pc)
# Compute and plot spectrum
wavl, rprs2 = spectrum(opa, case, atm, R=100)
ax.plot(wavl[1:], rprs2*1e2, drawstyle='steps-pre', lw=1, c='k')
# Compute the spectrum several more times, to show the impact of different species.
species = ['H2O','CH4','CO2','SO2']
for sp in species:
_, rprs2_1 = spectrum(opa, case, atm, R=100, atmosphere_kwargs={'exclude_mol':[sp]})
ax.fill_between(wavl[1:], rprs2*1e2, rprs2_1*1e2, step='pre', label=sp, alpha=0.3)
ax.set_xlim(2.7,5.3)
ax.set_ylabel('Transit Depth (%)')
ax.set_xlabel('Wavelength (microns)')
ax.grid(alpha=0.4)
ax.legend()
plt.show()

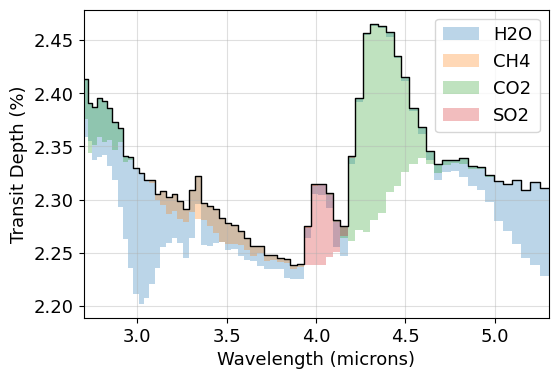

The plot above is similar to Figure 3b in Tsai et al. (2023). Note, however, that Tsai et al. (2023) took a slightly different approach for computing WASP-39b’s transmission spectrum. They did two 1-D photochemical calculations, one each for the morning and evening terminator. They then computed the transmission spectrum of both results, and averaged them to produce Fig. 3b. For simplicity, in this tutorial, we only computed the photochemistry & spectrum of the morning terminator.
